From Big to Accurate Tech: My Self Hosted Setup

The Mission

Replacing big tech platforms and subscriptions with self hosted solutions:

I built the system myself but you can get there in an afternoon with Yunohost. Yunohost provides a way to self-host a wide array of apps through a unified interface. I chose not to use it as I wanted to experiment and learn myself how to do it.

All this lives on a Hetzner's CX33 with a 100GB SSD volume (~10 euro/month) with a fully open-source implementation.

I decided not to self host emails as it gets tricky not to get your emails flagged as spam. Instead, I subscribed to a standard plan at mailbox.org and use this website's domain as a custom domain for my email (~ 3 euro/month).

Tools

Execution

From now on I will talk about the deployment you can find in my repo.

The full deployment needs 3 files:

Many self-hostable services have Docker compose files ready to go you can simply add to your global configuration. Networking and security are a bit less straightforward but all in all nothing esoteric. This is the high-level system diagram:

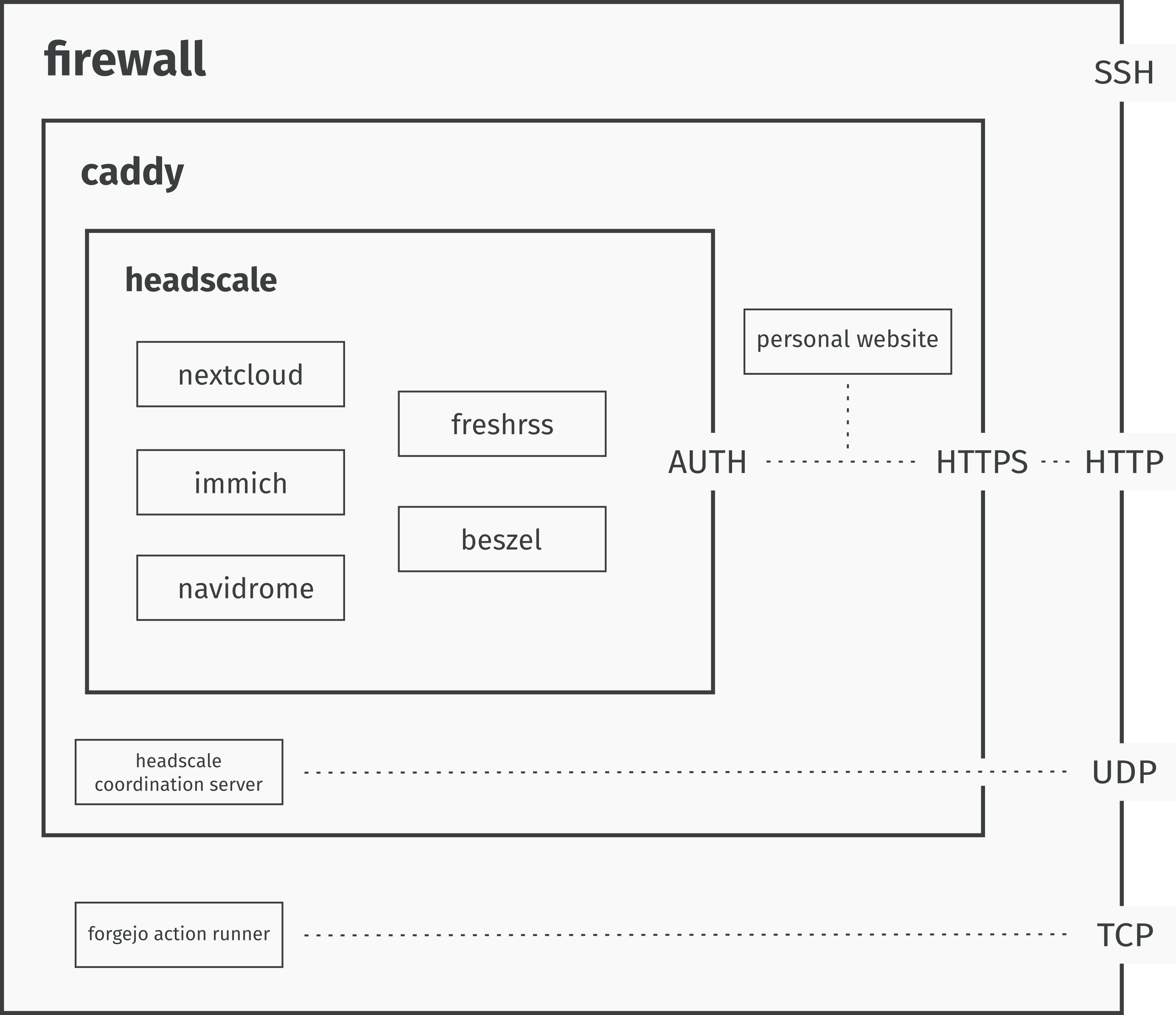

VPS architecture

When a request arrives:

  1. Firewall blocks everything that is not HTTP(S), SSH or specific TCP/UDP connections.
  2. Caddy acts as a reverse proxy managing HTTPS, rate limiting and hiding network topology.
  3. Then, the request gets filtered by Headscale that checks whether the device can access the required service.
  4. If everything went well the service is accessible.

This kind of configuration allows for seamless access for authorized devices while keeping the server reasonably secure.

We will now take a more in-depth look at some of the services that make this flow possible. I kept everything inside a single compose file to avoid scattering and ease long term maintenance.

Caddy Setup

Caddy is the reverse-proxy that handles all traffic to the server, including the traffic to this website. I extended the official docker image with a plugin for rate limiting access to this blog:

caddy:
  build:
    context: .
    dockerfile_inline: |
      FROM caddy:builder AS builder
      RUN xcaddy build \
          --with github.com/mholt/caddy-ratelimit

      FROM caddy:latest
      COPY --from=builder /usr/bin/caddy /usr/bin/caddy
  container_name: caddy
  restart: always
  volumes:
    - caddy_certs:/certs
    - caddy_config:/config
    - caddy_data:/data
    - caddy_sites:/srv
    - /root/blog:/blog
  network_mode: "host"
  configs:
  - source: Caddyfile
    target: /etc/caddy/Caddyfile

The idea here is using an inline Dockerfile to keep everything in one file, so much that also the Caddy config file is inside the same Docker compose file. In this section and all the following ones I will pick only the most relevant bits of the Docker compose file which is long (and boring) to be fully discussed in this article. Again, you find the full file in my repo.

Then, to actually serve the blog and rate limit it:

configs:
  Caddyfile:
    content: |
  (rate_limit_blog) {
      rate_limit {
          zone blog {
              key {remote_ip}
              events 500
              window 1s
              burst 100
          }
      }
  }

  $DOMAIN {

      import rate_limit_blog
      root * /blog

      encode zstd gzip

      header {
          Strict-Transport-Security "max-age=31536000; includeSubDomains"
          X-XSS-Protection "1; mode=block"
          X-Frame-Options "DENY"
          Content-Security-Policy "default-src 'self'; style-src 'self' 'unsafe-inline'; script-src 'self'"
      }

      file_server
  }

Any other service you want to add which you want to serve just needs basic reverse-proxy configuration. In my case, I decided to use this domain as the basis of all my networking configuration. This means, you need DNS records set up at your domain registrar (I use Porkbun and I would recommend it) and then add to the caddy configuration something like:

rss.$DOMAIN {
           reverse_proxy 127.0.0.1:8081
}

Above we assume that the Freshrss service container is akin to:

  freshrss:
    image: freshrss/freshrss:latest
    container_name: freshrss
    hostname: freshrss
    restart: unless-stopped
    logging:
      options:
        max-size: 10m
    volumes:
      - rss_data:/var/www/FreshRSS/data
      - rss_extensions:/var/www/FreshRSS/extensions
    ports:
      - "127.0.0.1:8081:80"

Where the original port 80 gets mapped to 8081 so avoiding clash with other services which may use port 80 by default.

At this point, we have a working reverse proxy configuration but anyone can access rss.dpaletti.com. In general, we assume a login page at that point but I would prefer to keep these services private given that I am also archiving personal photos and notes. To achieve this, we deploy Headscale.

Headscale

The main goal here is having a way to securely connect to my services by recording device identities.

headscale:
    image: headscale/headscale:latest
    container_name: headscale
    restart: unless-stopped
    command: serve
    configs:
      - source: headscale_config
        target: /etc/headscale/config.yaml
    volumes:
      # Use a named volume for the database and keys
      - headscale_data:/var/lib/headscale
      - headscale_run:/var/run/headscale
    dns:
      - 8.8.8.8
      - 1.1.1.1
    ports:
      - "127.0.0.1:8085:8080"
      - "127.0.0.1:9090:9090"
      - "3478:3478/udp"
    healthcheck:
      test: ["CMD", "headscale", "health"]

This is Headscale Docker compose configuration, almost everything copy pasted from the docs with slight adaptations:

  1. Configs: I decided I wanted to inline Headscale config so to have everything in one file.
  2. Labels and networks: this is Beszel specific config so that we can monitor resource utilization (you will find this attached to all services)
  3. port mapping: avoid clash with other services

Now we want to route traffic from caddy through Tailscale. We need to slightly extend the caddy config file:

(private) {
          @denied not remote_ip 100.64.0.0/10 fd7a:115c:a1e0::/48 127.0.0.1 ::1 2a01:4f8:1c1a:5a7b::1
          respond @denied "Access Denied: You are not on the private network." 403
      }

This rule checks whether the device is successfully logged into Tailscale, else it gets bounced. Last step is enforcing this rule for all traffic we want to filter, our Freshrss rule becomes:

rss.$DOMAIN {
         import private
         reverse_proxy 127.0.0.1:8081
}

At this point, we need the Tailscale log-in flow to work. We expose the Headscale coordination server through Caddy and we configure it appropriately:

 headscale.$DOMAIN {
   handle /web* {
       import private
       reverse_proxy 127.0.0.1:8086
  }

The trickiest part is the Headscale config:

      server_url: https://headscale.dpaletti.com:443
      [... defaults skipped, find the whole config in the repo ...]
      dns:
        magic_dns: true

        base_domain: vpn.dpaletti.com

        override_local_dns: true

        nameservers:
          global:
            - 8.8.8.8
            - 1.1.1.1

          split: {}

        search_domains: []
        extra_records:
          - name: "rss.dpaletti.com"
            type: "A"
            value: "100.64.0.1"
          [... some more records ...]
          - name: "rss.dpaletti.com"
            type: "AAAA"
            value: "fd7a:115c:a1e0::1"
    [... some more defaults ...]

The most important section is noting that for every service I want to expose I need appropriate magic DNS records so that Headscale correctly routes to the requested service.

This embeds services on subdomains of the domain hosting my blog while keeping access only to desired devices without recurring to Tailscale closed source coordination server.

Firewalld

Firewalld is truly great and easy to use. The main idea is that changes get applied immediately in the runtime environment without service restart. I am not an expert on this, so I got a bare bones configuration blacklisting all connections and selectively allowing only the ones I needed. On top of that, I enabled masquerading (network address translation) to allow Freshrss to download the feeds. This is all my configuration which I keep in a .sh file applied by simpling running it in a shell:

echo "==> Enabling firewalld"
systemctl enable --now firewalld

echo "==> Reload (clean slate)"
firewall-cmd --reload

echo "==> Setting default zone to public"
firewall-cmd --set-default-zone=public

echo "==> Enabling Masquerading (Required for container outbound traffic)"
firewall-cmd --permanent --zone=public --add-masquerade

echo "==> Explicitly allowing essential public services"
firewall-cmd --permanent --zone=public --add-service=ssh
firewall-cmd --permanent --zone=public --add-service=http
firewall-cmd --permanent --zone=public --add-service=https
firewall-cmd --permanent --zone=public --add-port=3478/udp

echo "==> Reloading firewall rules"
firewall-cmd --reload

The main idea is setting the default zone to public so that all connections get blocked by default. Then, add essential connections to the public zone to allow them. A simple setup, again, I am not good at this stuff.

Deployment

All this gets deployed to my VPS through a Forgejo action triggered on a main-branch push to my repo. Forgejo actions are Github action compatible so it's pretty straightforward to write one, you can find the full implementation in the repo. First we check out current changes, then we retrieve secrets (much like Github) and paste them in the .env file:

    steps:
      - name: Checkout repository
        uses: https://github.com/actions/checkout@v6

      - name: Update .env file with secrets
        run: |
          sed -i "s|SILVERBULLET_USER=.*|SILVERBULLET_USER=$|g" synced/.env
          sed -i "s|SILVERBULLET_PSW=.*|SILVERBULLET_PSW=$|g" synced/.env
          sed -i "s|BESZEL_TOKEN=.*|BESZEL_TOKEN=$|g" synced/.env
          sed -i "s|BESZEL_KEY=.*|BESZEL_KEY=$|g" synced/.env

At this point, we sync everything to the VPS through rsync, this is a good example of using a Github action inside a Forgejo action:

      - name: Sync to VPS
        uses: https://github.com/burnett01/rsync-deployments@v8
        with:
          switches: -avzr
          path: synced/
          remote_path: $
          remote_host: $
          remote_port: 22
          remote_user: $
          remote_key: $

Finally we apply firewall and Docker config using SSH keys we are keeping as secrets:

      - name: Execute deployment commands
        uses: https://github.com/appleboy/ssh-action@v1
        with:
          host: $
          port: 22
          username: $
          key: $
          script: |
            chmod +x firewalld_config.sh
            ./firewalld_config.sh
            docker compose up -d

Conclusions

I felt that I was spending too much time on platforms (which I was paying for) without getting much in return. User engagement optimization strategies began to feel unbearable. I don't want to waste time on these services while feeling incapable of logging out whenever I want.

Along these lines, I have also opened a Mastodon profile which helps me discover interesting people and discussions without (at least for now) addictive mechanisms. I could self-host my own Mastodon instance but for now I am on social.coop and I don't feel the need to. Keeping an instance updated is a greate deal of work and I think it does not make much sense for the time being. Maybe in a later article I will talk about how to stay on top of news, tech, science, culture, and whatnot without mainstream social media.

All that said, if you want the benefit without the hassle checkout Yunohost, all the services I talked about and many more are available for installation with a prebuilt solution you can host on a (rather performant) toaster.
